Mica Kit and Express Bur

The Mica Kit provides a crestal approach where the membrane is exposed so you can easily determine the thickness of the Schneiderian membrane. The elevation tools includes 4 sizes of mushroom elevators, a Cobra elevator, and an elevator and packing tool to place and pack bone

Surgical Method Classified by Sinus Condition

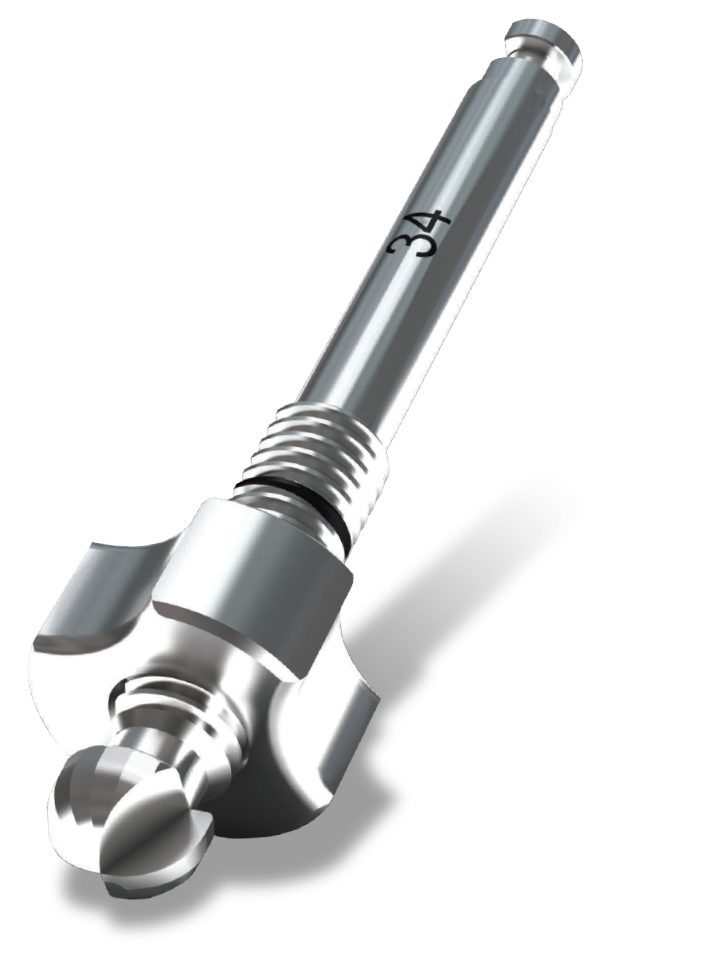

Express Bur

Combines function of Diamond Drill and Reamer Drill

Easy to Clean

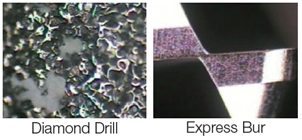

The smooth surface makes cleaning easy and leaves no residue after cleaning

Safety

Stopper provides safe drilling without damaging the membrane even when visibility is poor

Repeated Use

Bone chips can be easily removed without getting stuck, so longer life is guaranteed

Cutting Capability

Its excellent bone cutting capability eliminates the need for use of the pointed or ASBE trephine burs.

Mica Kit Contents

Fig 1. Drill with a point trephine bur: 2mm until the laser marking is reached
Fig 2. Drill with ASBE Trephine bur until 1-2mm of bone is left and break the bone by slightly tilting the bur. Remove the collected bone in the trephine by unscrewing the Mini Screw and rotating the shank
Fig 3. Adjust the position of the stopper to 1mm longer than the remaining bone height and drill with a Express bur 0.7-1mm smaller in size than the diameter of the fixture
Fig 4. Use the mushroom instrument to lift the membrane through the hole made
Fig 5. Lift membrane using the Cobra instrument
Fig 6. Graft the harvested bone and alloplastic material using the spreader
Fig 7. Adjust the stopper of the Condenser and fill the bone material up to desired depth
Fig 8. Install fixtures into the sites

Clinical Cases

(Fig 1. Intra-oral radiograph(Before

Fig 2. Point Trephine Bur: initial drill

Fig 3. ASBE Trephine Bur: make a hole

Fig 4. Express Bur: expand the hole

Fig 5. Spreader & Condenser: bone graft

Fig 6. Place a fixture

(Fig 7. Intra-oral radiograph (After

Fig 8. Postoperative Panoramic View

Fig 1. Diagnosis with CT

Fig 2. Before surgery

Fig 3. Flap reflection

Fig 4. ASBE Trephine Bur & Express Bur: expand the hole

Fig 5. Spreader & Condenser: bone graft

Fig 6. Place a fixture

Fig 7. Graft any buccal defect and place a collagen membrane

Fig 8. Primary closure

Fig 9. Postoperative Intra-oral radiograph
